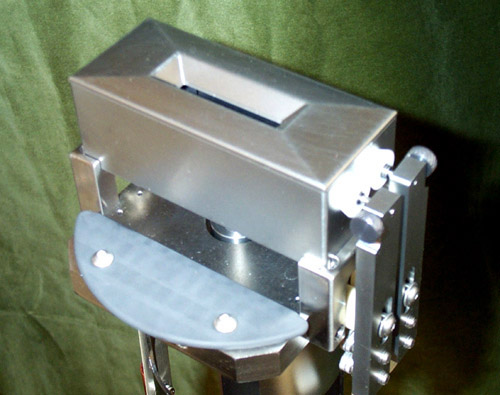

Signet Part Nbr 1044 - VAR - 160-10 Bernas A/C Conversion Kit
A "PDS" for a part indicates a link to a Signet Product Data Sheet in PDF format.
OEM Part Nbr QTY Part Description Part Image Signet PN PDS
2Flat Washer, M3.5 SST03-6W153
26-32 X 5/16 CPS Center Vented01-6631
1012000012Retaining Stud37-1200PDS
1Arc Chamber Weldment Support, Bernas31-5544
1Gas Feed Tube30-7271-1
F6609001 Ref.2Clamp, Stainless Steel30-0004
1Bracket, Gas Tube30-0001
E480000105#8 Washer, Split03-8WS0
28660002Standoff, 3/8D X 1/2L, 6-32 5/32Dp.37-6000
123120080848-32 X 1/2 SHC03-8050
2Repeller Insulator Spacer40-0868
2835011 Ref.2Knurled Thumb Nut 6-3203-6TN0
46-32 X 3/16 SHC03-6018
E480000114#10 Washer, Split03-1WS0
E480000184#10 Washer, Flat 03-1W00
410-32 X 3/8 SHC03-1037
332080848-32 X 1/2 SHC Center Vented01-8050
26-32 x 7/16 BH Center Vented01-6743
58-32 X 1/4 BH, WS203-8725
16000 series Front Plate f/Aperture40-9739-3
1Silver Strap, Bernas47-9739A
1Repeller Plate44-8983
1Filament Shield44-8982
1Insulating Bushing44-3283
2Spacer, S/S44-0946PDS
5Insulating Bushing, A/C44-0868
1Gas Feed Tube Nut and Ferrule Kit44-0163
H59960012Shield, Graphite37-5996
1Replaceable Aperture40-9739-4
1Silver Crossover Strap47-9739B
2Repeller Cup Shield, Ta40-9042-2
2Fil. Mounting Screw f/ .080 Fil40-8993-2
2Modified A/C Mount f/6-3240-8987-4
1Filament, 0.080" dia.40-8985A
2Repeller Stud 10-32 x 1 3/3240-8984
2Filament Clamp, Enhanced40-8980-1PDS
1Extended U Liner, Mo40-6023E
1Main Body, f/long Liner, plugged40-9739-7
